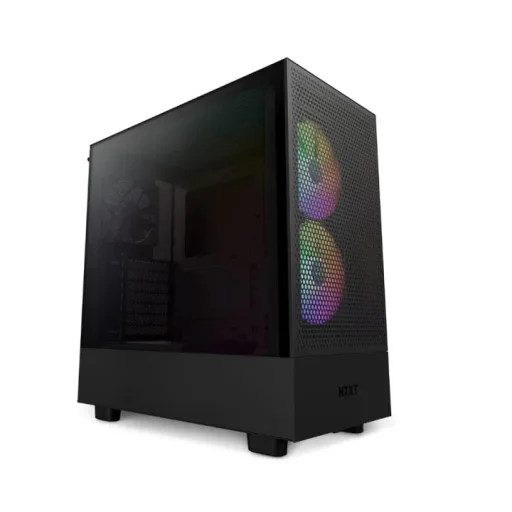

NZXT H5 FLOW RGB (2023) ATX Mid-Tower Case – Black

Product Type: Compact ATX Mid-Tower Case
Series: H5 Flow RGB (2023)
Color: Black
Model Number: CC-H51FB-R1
General

Enclosure Type: Mid-Tower
Materials: SGCC Steel, Dark Tinted Tempered Glass
Dimensions (H × W × D): 464 × 227 × 446 mm
Weight: 7.36 kg

Motherboard Compatibility

ATX
Micro-ATX
Mini-ITX

Component Clearance

Maximum CPU Cooler Height: 165 mm
Maximum GPU Length: 365 mm
Maximum PSU Length: 185 mm
Front Radiator Clearance: 45 mm
Cable Management Clearance: Up to 23 mm

Cooling Support
Front:

2 × 120 mm
2 × 140 mm
Includes 2 × F140 RGB Core Fans

Top:

2 × 120 mm

Rear:

1 × 120 mm
Includes 1 × F120Q Airflow Fan

Bottom:

1 × 120 mm
Includes 1 × F120Q Airflow Fan

Radiator Support

Front: Up to 280 mm
Top: Up to 240 mm
Rear: Up to 120 mm

Included Fans
F140 RGB Core – Case Version

Quantity: 2
Fan Size: 140 mm
Speed: 1,200 ± 120 RPM
Airflow: 61.74 CFM
Static Pressure: 2.06 mm-H₂O
Noise Level: 29.05 dBA
Connector: 3-Pin DC

F120Q Airflow – Case Version

Quantity: 2
Fan Size: 120 mm
Speed: 1,200 ± 120 RPM
Airflow: 62.18 CFM
Static Pressure: 1.05 mm-H₂O
Noise Level: 25.1 dBA
Connector: 3-Pin DC

RGB Lighting

RGB Fans: 2 × F140 RGB Core
LEDs: 8 LEDs per fan
RGB Connector: 4-Pin NZXT RGB / 3-Pin 5V Addressable RGB
RGB Controller: Not Included
Control: Connects directly to compatible motherboard RGB header

Front I/O

USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 2×2 Type-C (20 Gbps): 1
3.5 mm Headset Audio Jack: 1

Expansion & Storage

Standard Expansion Slots: 7
Vertical Expansion Slots: 0
2.5″ Drive Bays: 2 (1 + 1)
3.5″ Drive Bays: 1
