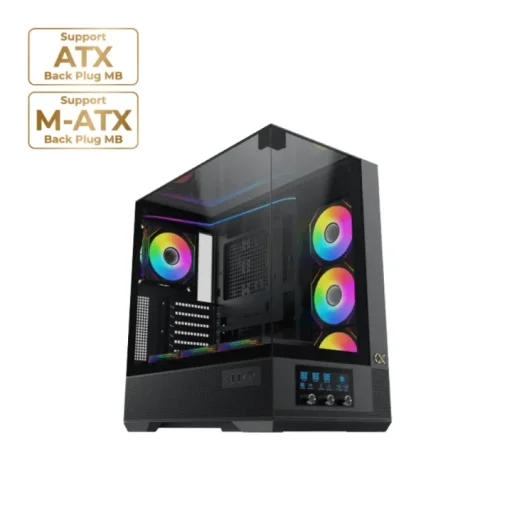

XIGMATEK VISION – E-ATX Mid-Tower PC Case – Black

Product Type: E-ATX Mid-Tower PC CaseSeries: VisionColor: BlackMaterial: Steel
General

Dimensions (L × W × H): 450 × 258 × 476 mm

Power Supply Type: Standard PS2 ATX PSU

Maximum PSU Length: 220 mm

Motherboard Compatibility

E-ATX

ATX: Supports Back-Plug Motherboards

Micro-ATX

Mini-ITX

Maximum E-ATX Width: 290 mm

Component Clearance

Maximum CPU Cooler Height: 180 mm

Maximum GPU Length: 420 mm

GPU Installation: Horizontal / Vertical

Cooling Support
Motherboard Side:

3 × 120 mm

3 × 140 mm

PSU Shroud:

3 × 120 mm

Rear:

1 × 120 mm

1 × 140 mm

SSD/HDD Mounting Bracket:

1 × 120 mm

Radiator Support
Motherboard Side:

240 / 280 / 360 mm

E-ATX Motherboard Width ≤ 290 mm

Storage Support
Rear Motherboard Panel – SSD/HDD Mounting Bracket:

1 × 3.5″ HDD

or 2 × 2.5″ SSD

SSD/HDD Mounting Flip Cover – Option A:

3 × 3.5″ HDD

or 2 × 3.5″ HDD + 1 × 2.5″ SSD

or 1 × 3.5″ HDD + 2 × 2.5″ SSD

or 3 × 2.5″ SSD

SSD/HDD Mounting Flip Cover – Option B:

2 × 3.5″ HDD

or 1 × 3.5″ HDD + 1 × 2.5″ SSD

or 2 × 2.5″ SSD

Expansion Slots

Standard Expansion Slots: 7

GPU Installation: Horizontal / Vertical

Front I/O

USB 3.0 Type-A: 2

USB Type-C: 1

HD Audio: 1

Included Fans
EN45196 Configuration:

1 × G24A Fan

6 × G24A Reverse Fans

ARGB LED Fan Control Panel

EN45202 Configuration:

1 × G24A Fan

3 × G24A Reverse Fans

ARGB LED Fan Control Panel

Smart Fan Control

LCD Display Panel: Included

Fan Speed Control: 800 / 1200 / 1700 / 2200 RPM

Fan Control: Up to 4 fan-speed settings

ARGB Lighting Control: Supported

Motherboard ARGB Sync: Supported

ARGB & PWM Hub: Included
