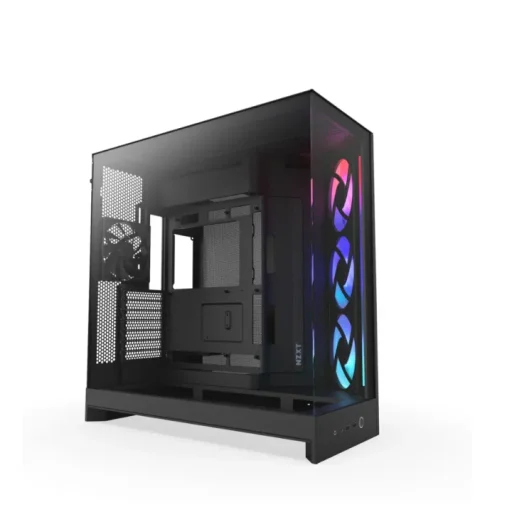

NZXT H9 FLOW RGB DUAL-CHAMBER MID TOWER Airflow Black CASE

Product Type: Dual-Chamber Mid-Tower PC Case
Series: NZXT H9 Flow RGB
Model: H9 Flow RGB
Color: Black

General
Case Material: SGCC Steel & Tinted Tempered Glass
Case Type: Dual-Chamber Mid-Tower
Motherboard Support

E-ATX (Up to 277mm Wide)
ATX
Micro-ATX
Mini-ITX

Rear-Connect Motherboard Support

ASUS BTF
MSI Project Zero
Compatible Back-Connect ATX Motherboards

Storage Support
Drive Bays

2 × 3.5″ HDD
4 + 2 × 2.5″ SSD

Expansion
Expansion Slots: 7

Front I/O
USB Ports

1 × USB 3.2 Gen 2×2 Type-C
2 × USB 3.2 Type-A

Audio

3.5mm Headset Jack

Controls

Power Button

Cooling Support
Front-Right

3 × 120mm Fans
3 × 140mm Fans

Top

3 × 120mm Fans
3 × 140mm Fans

Bottom

3 × 120mm Fans
3 × 140mm Fans

Rear

1 × 120mm Fan

Pre-Installed Fans
Front-Right

1 × F420 RGB Core Fan

Rear

1 × F120Q (CV) Fan

Radiator Support
Front-Right

Up to 420mm

Top

Up to 420mm

Bottom

Up to 360mm

Rear

Up to 120mm

RGB Lighting
Lighting: Addressable RGB (ARGB)
Control: 5V ARGB Connection
Software Support: Compatible with NZXT CAM software and standard 5V ARGB motherboard synchronization. (NZXT)

Clearance
Maximum CPU Cooler Height: 165mm
Maximum Graphics Card Length:

Up to 459mm (Standard Fan Configuration)
Up to 410mm (With 420mm Radiator Installed)

Maximum Power Supply Length: 200mm

Dust Protection
Integrated Dust Protection:

Front-Right Mesh Panel
Top Mesh Panel
Bottom Removable Dust Filter

Dimensions & Weight
Dimensions (H × W × D): 506 × 315 × 481mm
Net Weight: 12.6kg

Package Contents

NZXT H9 Flow RGB Black Case
1 × F420 RGB Core Fan
1 × F120Q (CV) Rear Fan
Installation Accessories
User Guide (NZXT)
