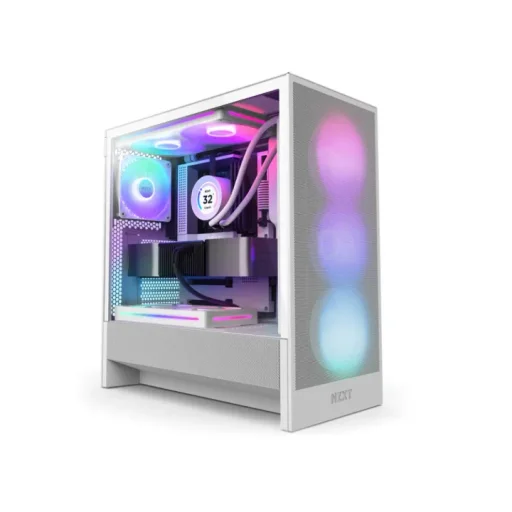

NZXT H5 FLOW RGB EDITION ATX MID TOWER CASE 2024-White

Product Type: Mid-Tower PC Case
Series: NZXT H5 Flow (2024)
Model: H5 Flow RGB (2024)
Color: White

General
Case Material: SGCC Steel & Ultra-Clear Tempered Glass
Case Type: Compact Mid-Tower
Motherboard Support

E-ATX (Up to 277mm Wide)
ATX
Micro-ATX
Mini-ITX

Storage Support
Drive Bays

1 × 3.5″ HDD
2 × 2.5″ SSD

Expansion
Expansion Slots: 7
Vertical GPU Support: Compatible with NZXT Vertical GPU Mounting Kit (2024 Edition)

Front I/O
USB Ports

1 × USB 3.2 Gen 2×2 Type-C
1 × USB 3.2 Type-A

Audio

3.5mm Headset Jack

Controls

Power Button

Cooling Support
Front

3 × 120mm Fans
2 × 140mm Fans

Top

2 × 120mm Fans
2 × 140mm Fans

Bottom

2 × 120mm Fans

Rear

1 × 120mm Fan

Pre-Installed Fans
Front

1 × F360 RGB Core Fan (Single-Frame RGB)

Rear

1 × F120Q Airflow Fan

Radiator Support
Front

Up to 360mm
Up to 280mm

Top

Up to 240mm
Up to 280mm (Low-Profile Memory Required)

Rear

Up to 120mm

RGB Lighting
Lighting: Addressable RGB (ARGB)
Control: 5V ARGB Connection
Software Support: Compatible with NZXT CAM and standard 5V ARGB motherboard synchronization.

Clearance
Maximum CPU Cooler Height: 170mm
Maximum Graphics Card Length: 410mm
Maximum Power Supply Length: 200mm
Cable Management Clearance: 28.7mm

Dust Protection
Integrated High-Performance Mesh Panels:

Front
Top
Bottom

Dimensions & Weight
Dimensions (H × W × D): 465 × 225 × 430mm
Net Weight: 7.63kg

Package Contents

NZXT H5 Flow RGB (2024) White Case
1 × F360 RGB Core Fan
1 × F120Q Airflow Fan
Installation Accessories
User Guide (NZXT)
